 EG6/2/8/9 CIVIC, CR-X |
 |
 |
| Type FS |
| *Click the damper images below to see larger pictures. |

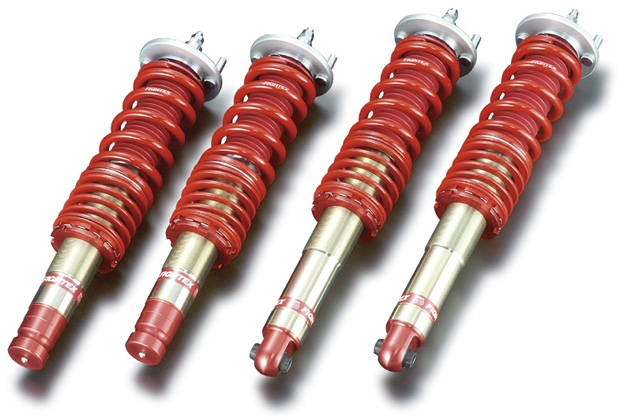

| EG6/2/8/9 (CIVIC, CR-X) FIGHTEX Damper KIT |
| Type |
 |
 |
 |
 |
 |
 |
 |
|
| Kit contents |
Damper + Spring + Pillow ball upper Mount |
| Model |
EG6/2/8/9 (CIVIC, CR-X) |
| Part No. |
51500-EG6-000 |
51510-EG6-000 |
51520-EG6-000 |
51530-EG6-000 |
| Price (KIT) |
¥238,000~
*Please ask |
¥338,000~
*Please ask |
¥238,000 |
¥258,000 |
| Price (damper only) |
51502-EG6-000
¥158,000~
*Please ask |
51512-EG6-000
¥258,000~
*Please ask |
51522-EG6-000
¥170,000 |
51532-EG6-000
¥190,000 |
| Price (damper + spring) |
51501-EG6-000
¥188,000~
*Please ask |
51511-EG6-000
¥288,000~
*Please ask |
51521-EG6-000
¥188,000 |
51531-EG6-000
¥208,000 |
Option |
 Pillow-ball bush (R ¥10,000) |
Supplied spring rate
[kgf/mm-mm] |
Front |
8K-160 |
8K-160 |
8K-160 |
18K-160 |
| Rear |
6K-160 |
6K-160 |
6K-200 |
8K-200 |
| accessories |
Helper springs |
Helper springs |
- |
- |
| Design |
F/R Standard design |
|
|
--Spring rate can be changed at the time of order with no additional cost (depending on the spring rate, damping force may need to be changed with extra cost).
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)
|
Damper KIT contents: Damper, main spring, helper spring (on certain types only), pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided. |
|
|
|
|
