EK4/9 CIVIC, TypeR
well

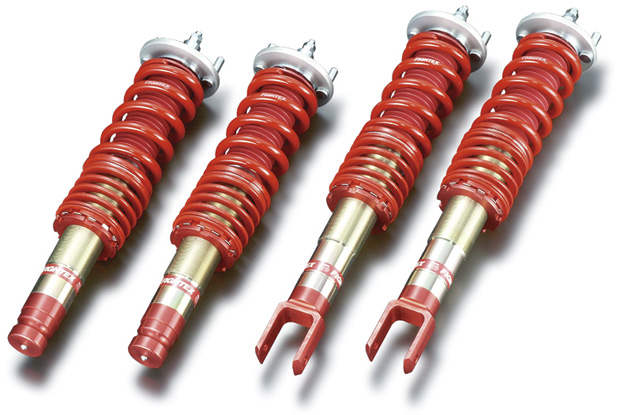

TypeFS
*Click the damper images below to see larger pictures.
EK4/9 FIGHTEX Damper KIT
Type TypeFS TypeST TypeDA TypeDA-G TypeN1
fs st st st st
Kit contents Damper + Spring + Pillow ball upper Mount
Model EK4/9 (CIVIC TypeR)
Part No. 51500-EK9-000 51510-EK9-000 51520-EK9-000 51530-EK9-000 51560-EK9-000
Price (KIT) ¥238,000 ¥338,000 ¥238,000 ¥258,000 ¥258,000
Price (damper only) 51502-EK9-000
¥158,000		 51512-EK9-000
¥258,000		 51522-EK9-000
¥170,000		 51532-EK9-000
¥190,000		 51562-EK9-000
¥190,000
Price (damper + spring) 51501-EK9-000
¥188,000		 51511-EK9-000
¥288,000		 51521-EK9-000
¥188,000		 51531-EK9-000
¥208,000		 51561-EK9-000
¥208,000
Supplied spring rate
[kgf/mm-mm]		 Front 10K-160 10K-160 10K-160 20K-160 20K-160
Rear 8K-160 8K-160 8K-200 7K-200 18K-160
Accessories Helper springs Helper springs - - -
Design F/R Standard design
Remarks - - - - *1
*1 N1 race can't use pillow ball upper mount by the competition regulation.
-Spring rate can be changed at the time of order (A price is the same).
Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)
Damper KIT contents: Damper, main spring, helper spring (on certain types only), pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.
