 SW20 MR2 |
 |
 |
| Type FS |
| *Click the damper images below to see larger pictures. |

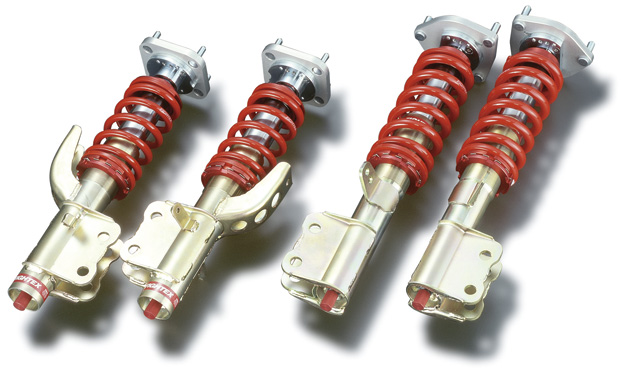

| SW20 FIGHTEX Damper KIT |
| Type |
 |
 |
 |
 |
 |
 |
 |
|
|
|
| Kit contents |
Damper + Spring + Pillow ball upper mount |
| Model |
SW20 (MR2) |
| Part No. |
51500-SW2-000 |
51520-SW2-000 |
51530-SW2-000 |
51540-SW2-000 |
51550-SW2-000 |
| Price (KIT) |
¥276,000~
*Please ask |
¥288,000 |
¥308,000 |
¥398,000~
*Please ask |
¥398,000~
*Please ask |
| Price (damper only) |
51502-SW2-000
¥208,000~
*Please ask |
51522-SW2-000
¥220,000 |
51532-SW2-000
¥240,000 |
- |
- |
| Price (damper + spring) |
51501-SW2-000
¥226,000~
*Please ask |
51521-SW2-000
¥238,000 |
51531-SW2-000
¥258,000 |
- |
- |
Supplied spring rate
[kgf/mm-mm] |
Front |
7K-160 |
7K-160 |
6K-160 |
7K-160 |
6K-160 |
| Rear |
11K-200 |
11K-200 |
10K-200 |
11K-200 |
10K-200 |
| Design |
F: Up side down design / R: Standard design |
|
|
-Spring rate can be changed at the time of order with no additional cost (depending on the spring rate, damping force may need to be changed with extra cost).
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)
|
Damper KIT contents: Damper, main spring, pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. |
|
|
|
|
