 ZZW30 MRS |
 |
 |

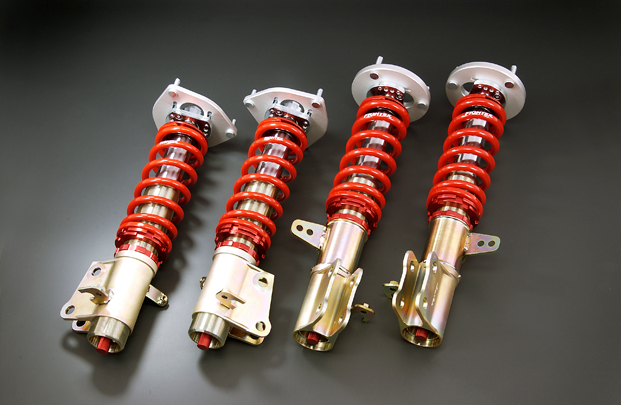

| ZZW30 FIGHTEX Damper KIT |
| Type |
 |
| Kit contents |
Damper + Spring + Pillow ball upper mount |
| Model |
ZZW30 (MRS) |
| Part No. |
51520-ZW3-000 |
| Price (KIT) |
¥294,000 |
| Price (damper only) |
51522-ZW3-000 ¥220,000 |
| Price (damper + spring) |
51521-ZW3-000 ¥244,000 |
Supplied spring rate
[kgf/mm-mm] |
Front |
4K-200 |
| Rear |
7K-200 |
| Accessories |
Rear helper springs |
| Design |
F/R Up side down design |
|
|
-Spring rate can be changed at the time of order with no additional cost (depending on the spring rate, damping force may need to be changed with extra cost).
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)
|
Damper KIT contents: Damper, main spring, rear helper spring, pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided. |
|
|
|
|
