*This product is for Power Liner KIT. Not be able to use with a standard cylinder block

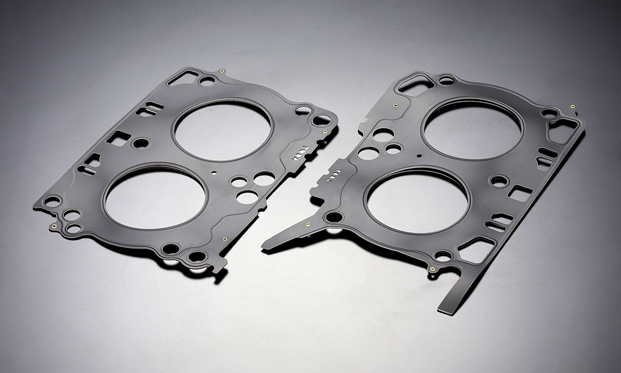

FA20 High Stopper Metal Head Gasket

Engine type

FA20 (TOYOTA 86/SUBARU BRZ)
Part No. 12251-FA2-006-L 12251-FA2-006-R 12251-FA2-008-L 12251-FA2-008-R
Type Left Right Left Right
Price ¥15,000 ¥15,000 ¥15,000 ¥15,000
Thickness 0.6mm 0.8mm
Bore size ø90.5mm ø90.5mm
Remarks Standard thickness For resurfacing

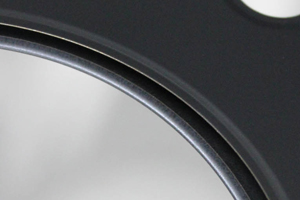

[Inside of head gasket]

*This product is for Power Liner KIT. Not be able to use with a standard cylinder block
Grommet metal head gasket has 0.8mm thickness. Please consider the thickness difference from the standard when you use this product. Also this product is designed to have strong gas sealing performance for high boosted engines. Due to this product extra sealing force, the cylinder head or block may very slightly distort after disassembling.

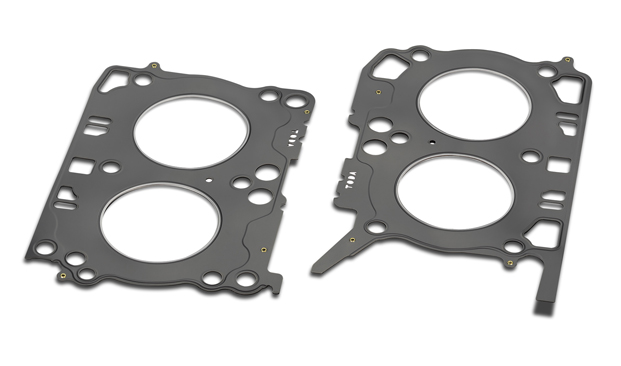

FA20 Metal Head Gasket - Grommet type (for high boosted engine)

Engine type

FA20 (TOYOTA 86/SUBARU BRZ)
Part No. 12251-FA2-G08-L 12251-FA2-G08-R
Type Left Right
Price ¥18,000 ¥18,000
Thickness 0.8mm
Bore size ø90.5mm
Remarks For resurfacing
