< Modification > - 2013/11
For further improvement, the inside of intake manifolds are machined. This modification enables smooth surface and straight connection with cylinder head, which helps to improve performance.

*The cylinder head on the images is ported by us.
*Intake gasket is not placed for clear vision of inside.

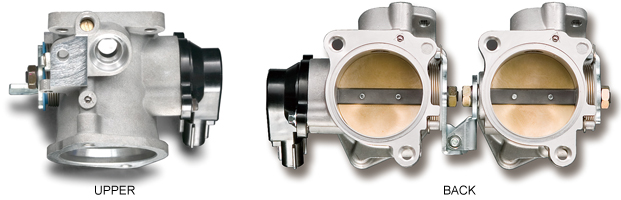

An individual throttle for each cylinder. Gives super response, and improvements through out the rev range to both power and torque.
*The standard trumpet length is 88mm

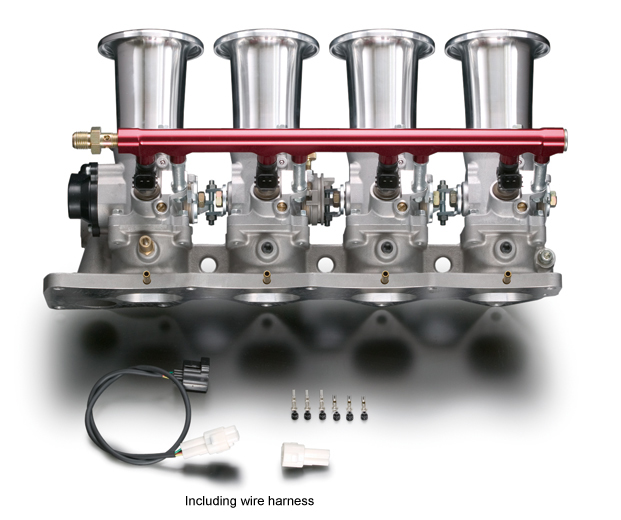

F20C (S2000) Sports Injection KIT
Throttle valve size: Ø50mm

Engine Type

 F20C
Part No. 17100-F20-203 17100-F20-206 17100-F20-208
Price ¥290,000 ¥290,000 ¥290,000
Throttle valve size
ø50mm
Trumpet 33mm 63mm 88mm
*Delivery pipe designed to be used with standard F20C/AP1 injector nozzle size.
*Please ask for the use for AP2 in advance.
*Injectors are not included.
*TODA throttle body is based on the TOYOTA AE101 manifold bolt pattern.
>Here is Big Single Throttle and Regulator Set Plate for F20C(AP1)
